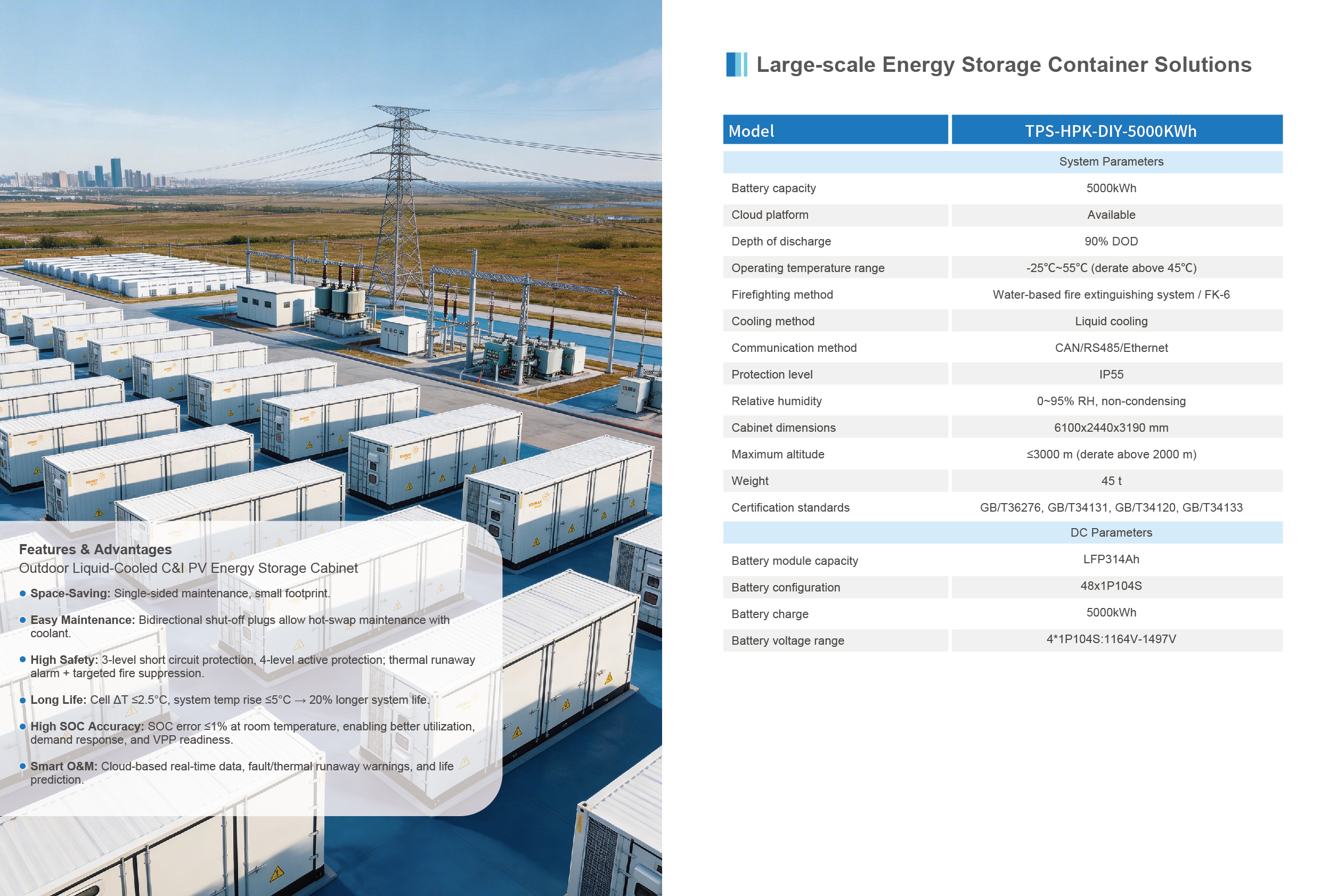

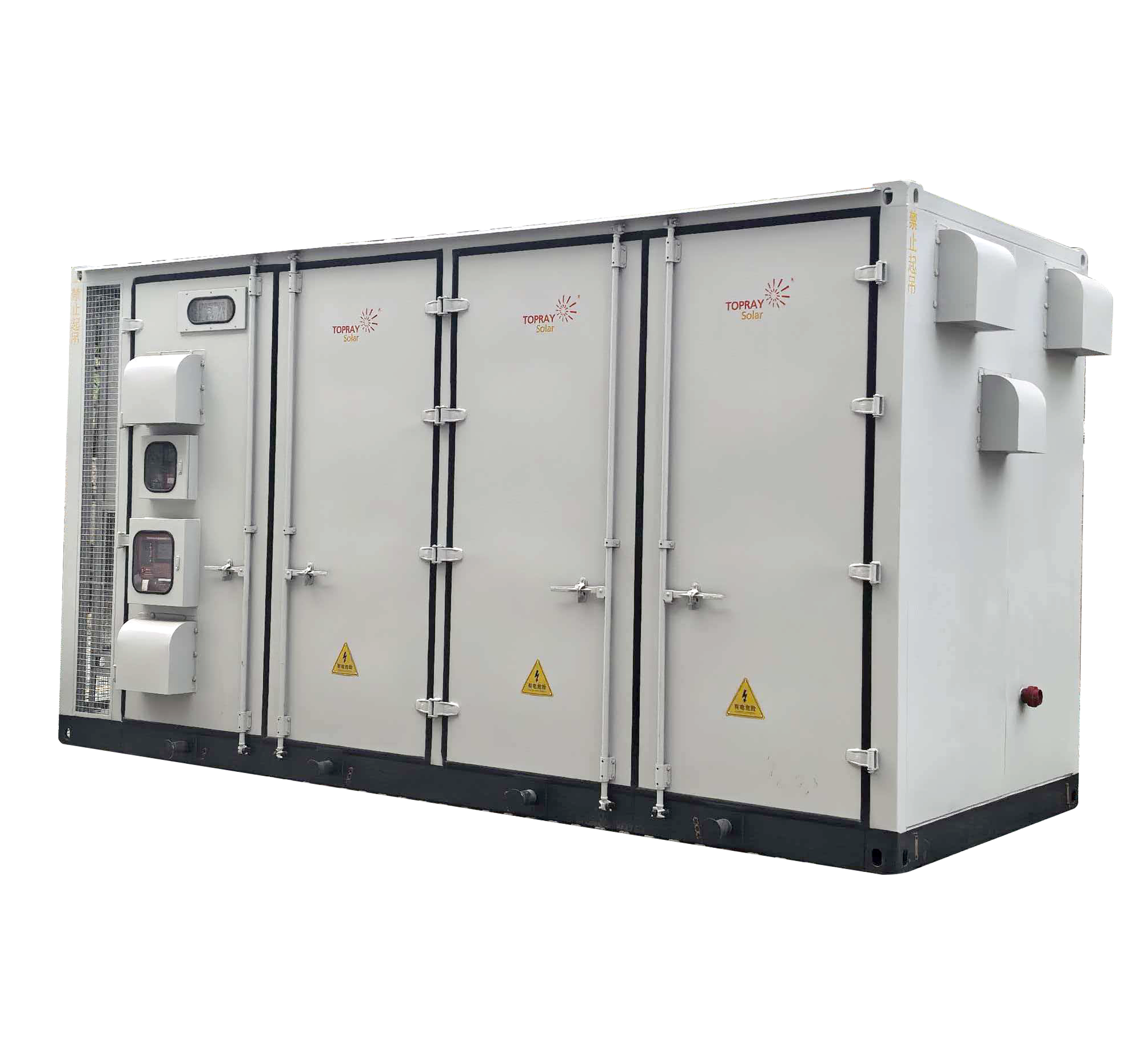

5MWh EnergyStorage Systems
Model:TPS-HPK-DIY-5000KWh
Battery capacity:5000kWh
Depth of discharge:90% DOD
Operating temperature range:-25℃~55℃ (derate above 45℃)
Firefighting method:Water-based fire extinguishing system / FK-6
Cooling method:Liquid cooling
Communication method:CAN/RS485/Ethernet
Protection level:IP55
Cabinet dimensions:6100x2440x3190 mm
Weight:45t
Product DetailsDownload
