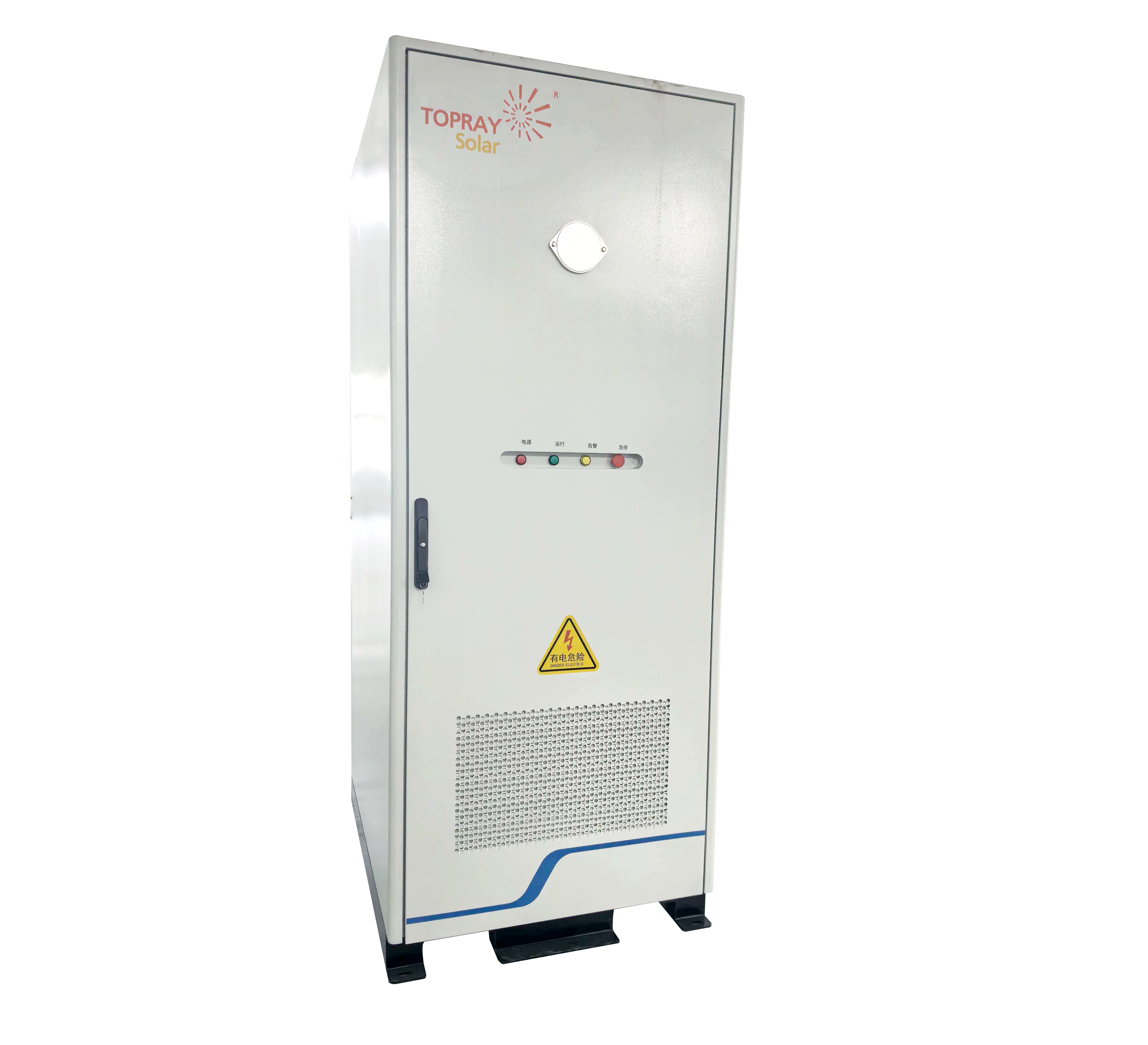

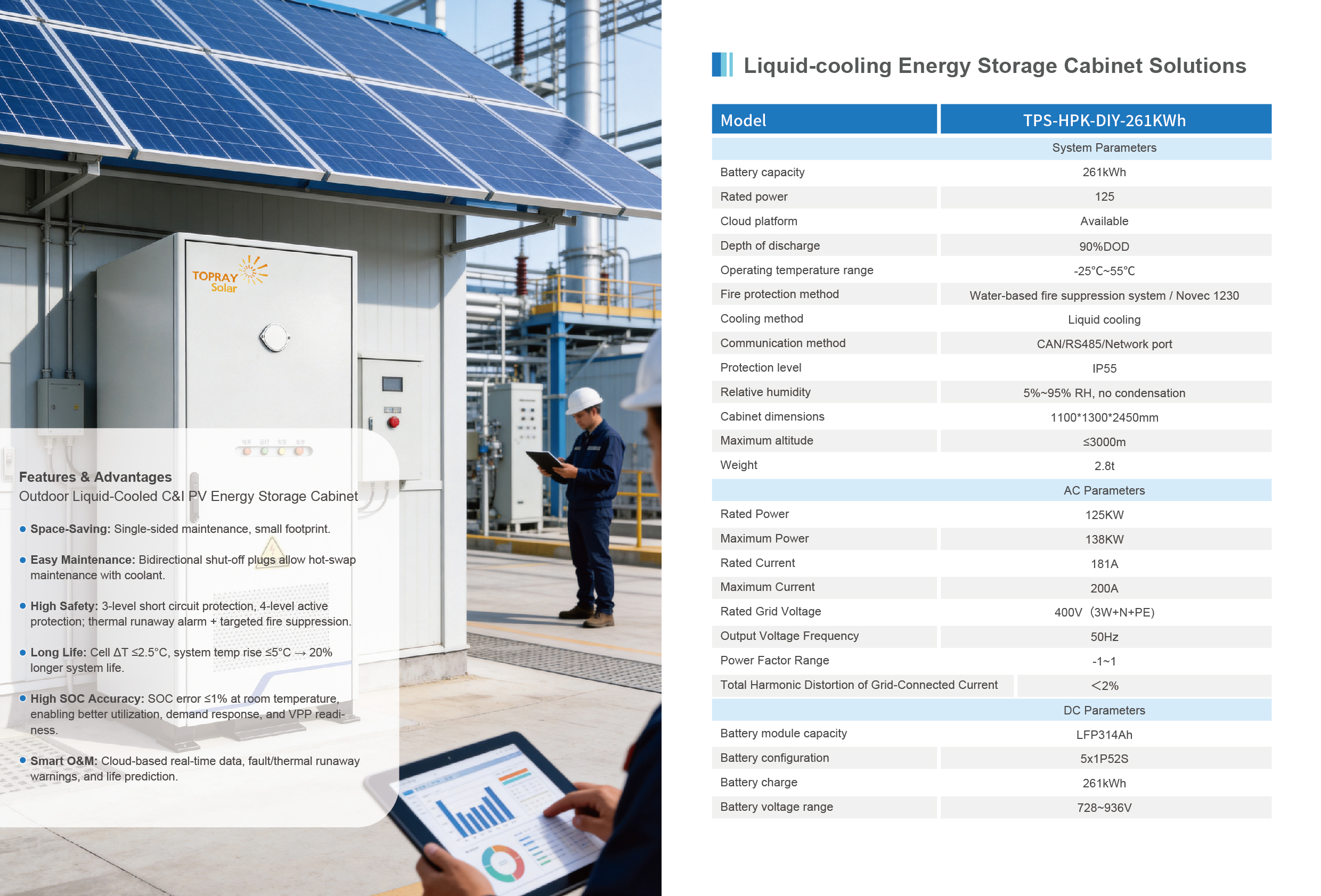

Liquid-cooling Energy Storage Cabinet Solutions

Model：TPS-HPK-DIY-261KWh

Battery capacity：261kWh

Rated power：125

Depth of discharge：90%DOD

Operating temperature range：-25℃~55℃

Fire protection method：Water-based fire suppression system / Novec 1230

Communication method：CAN/RS485/Network port

Protection level：IP55

Relative humidity：5%~95% RH, no condensation

Cabinet dimensions：1100*1300*2450mm

Weight：2.8t
